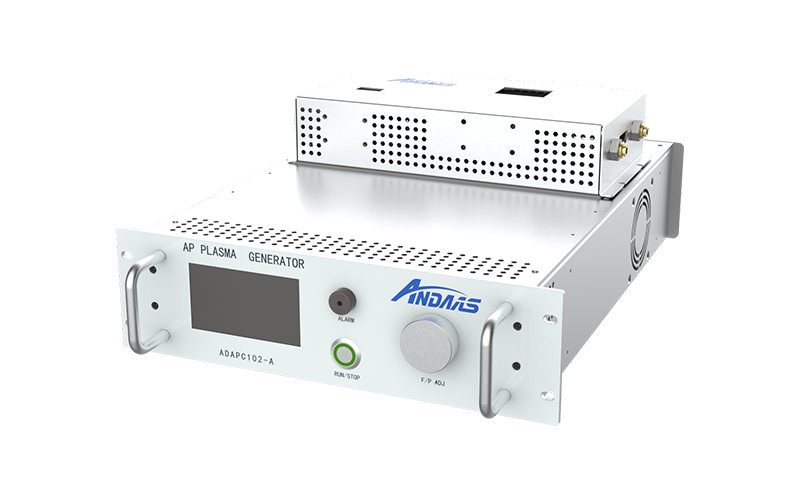

数字等离子发生电源

产品特点:

•宽范围交流电压输入100-240VAC适用不同国家，地区；

• 可编程工艺参数设置（工作频率，功率、气压，电压等）；

• 小体积电源机箱；

• 可分体插拔式枪体连接；

• 产品运行低功耗，低ESD，低噪音干扰；

• 自动检测、适配多种规格枪嘴枪体；

• 多重安全保护报警（电网电压，气体压力，流量监测，功率不匹配，转速，过温，过载，断焰，等）；

• 多种控制方式：本地，PLC/IO远程，RS485通讯；

• 配4.3寸彩色触摸屏快速设置工作参数及实时显示；

• 采用数字电源技术，输出纯正弦波电压。

技术规格:

产品参数
Product Parameters
型号Model	ADAPC102-A
外形尺寸(mm) Overall dimensions	L450xW360×H100
重量(kg) Weight	10
气压(Mpa) Air pressure	0.1-0.4
认证标准 Certification standards	CCC/CE
输入电压 Input voltage	AC100-240V50/60Hz
功率因数 Powerfactor	20.9
额定功率(W) Rated power	1000W
工作频率 Operating frequency	25-50
高压输出(KV) High voltage output	9-12
24V DC输出(W) 24VDC output	120
工作效率 Work efficiency	90%
通讯协议 Communication protocol	RS485通讯/CAN
工作环境温度(℃) Operating ambient temperature	-25~45
数字电源工作效率 Digital Power Efficiency	高达90%

常压等离子清洗系列
Application Sectors

型号 Model	常压低温尖嘴系列 Atmospheric Pressure Low Temperature Tip Series	常压低温旋转系列 Atmospheric Pressure Low Temperature Rotary Series	常压低温高转速系列(带离子光谱检测) Atmospheric Pressure Low Temperature High Speed Series (with lon Spectrum Detection)
技术说明 Technical Description	设计独立磁场，不增加功耗的前提下增强电场，使得电离更充分； Design independentmagnetic field, enhance the electric field without increasing power consumption, making ionization more fully; ·设计空气加压导流，气流及导热更均匀； Design of air pressurized conduction more uniform airflow and heat conduction; 设计两级点火，气体电离更充分，增强等离子体密度与强度； Design of two-stage ignition, gas ionization more fully,enhanced plasma density and intensity; 温度更低； Lowertemperature; ·枪嘴外延无拉弧设计，喷出的离子束更均匀，温度更可控 Nozzle extension without pulling arc design,the sprayedion beam is more uniform and the temperature is more controllable.	·中等旋转速率等离子喷枪产生低温等离子体； Medium rotational rate plasma gun produceslow temperature plasma; 独立枪嘴设计，温度更可控 Independent nozzle design for more temperature control; ·低热效应条件下实现超精细清洗和高效等离子活化； Ultra-fine cleaning and efficient plasma activation under low thermal effect conditions ·介质流量测量和监控。 Media flow measurement and monitoring.	·高旋转速率等离子喷枪产生低温等离子体； High rotational rate plasma gun generating low temperature plasma; ·独立枪嘴设计，温度更可控； Independent nozzle design for more tem perature control; ·低热效应条件下实现超精细清洗和高效等离子活化； Ultra-fine cleaning and efficient plasma activation under low thermal effect conditions; ·可选配等离子体进行连续的光谱监测； Motion and rotation speed monitoring ofthe plasma gun; 等离子体喷枪的运动和旋转速度监测； Optional plasma for continuous spectral monitoring; ·介质流量测量和监控； Mediaflowmeasurement and monitoring ·可分体插拔式枪体； Split-pluggable gun body; ·产品运行低功耗，低ESD,低噪音干扰 The product operates with low power consumption,low ESD,and low noise interference; ·喷枪的旋转速度达6000RPM。 Gun rotation speed up to 6000 RPM.

技术优势 Technical Advantages	·电离更充分 More complete ionization ·导热更均匀 More uniform heat transfer ·两级电离点火 Two-stage ionization point ·温度可控 Temperature controllable 离子束更均匀 More uniform beam separation	·两级电离点火 Two-stage ionization ignition ·离子束更均匀饱满 lon beam is more uniform and full	·高速高效处理表面 High-speed and efficient treatment of surfaces ·等离子体喷射方向更稳定 More stable plasma jet direction
枪嘴规格 (可订制) Nozzle Specifications (customizable)	02.5mm//04mm	050mm//070mm
